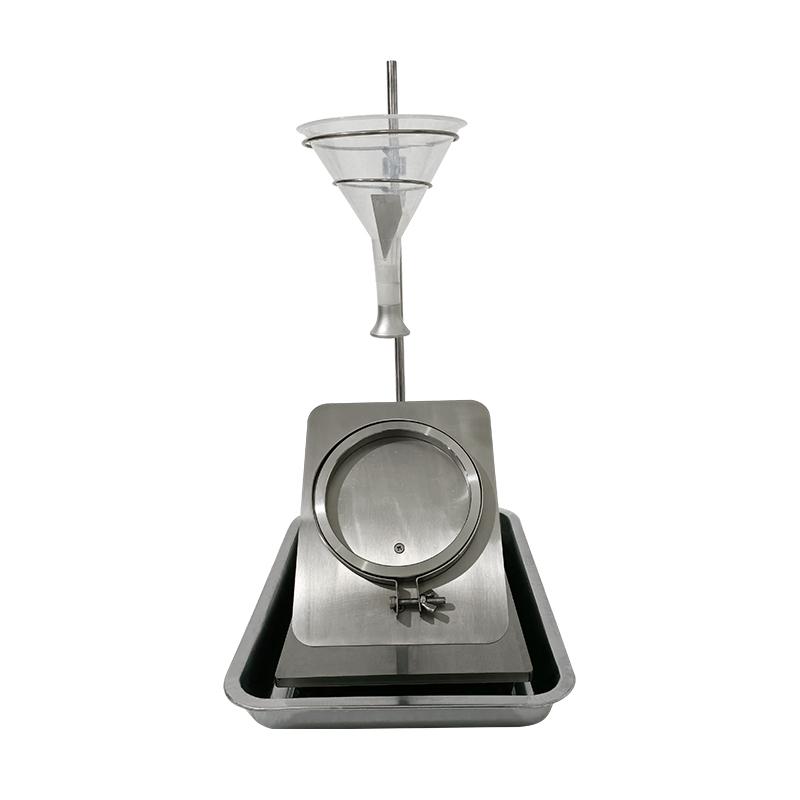

Spray Rating Tester For Textile GT-C31
Key Specifications
Funnel capacity: 500ml
Specimen gradient: 45degree
Distance between nozzle and specimen center: 150mm
Spraying quantity: 250ml
Dimensions: 200x250x500mm (L x M.x H)
Weight: 6kg
Details
Catalog Download
Manual Download
Video
Details
Product Introduction
Application: Spray Rating Tester can performs a shower test to determine the resistance of fabric to surface wetting by water. Spraying quantitative distilled water on the specimen (at a 45 degree angle and 150 mm below) with standard nozzle. Then contrast and evaluate the specimen surface with the standard cards. AATCC 22 ISO 4920 |
Feature
1. Spray Rating Tester Made by stainless steel, the instrument is durable.
2. Special designed specimen ring clamp, operate easy and keep the result more objective.
3. The spray nozzle is a high precision machined component, ensuring the water flow complies exactly with the standards.
2. Special designed specimen ring clamp, operate easy and keep the result more objective.
3. The spray nozzle is a high precision machined component, ensuring the water flow complies exactly with the standards.
Key Specifications
Application Industry
All kinds of materials can be tested on the Spray Rating Tester for Textile
