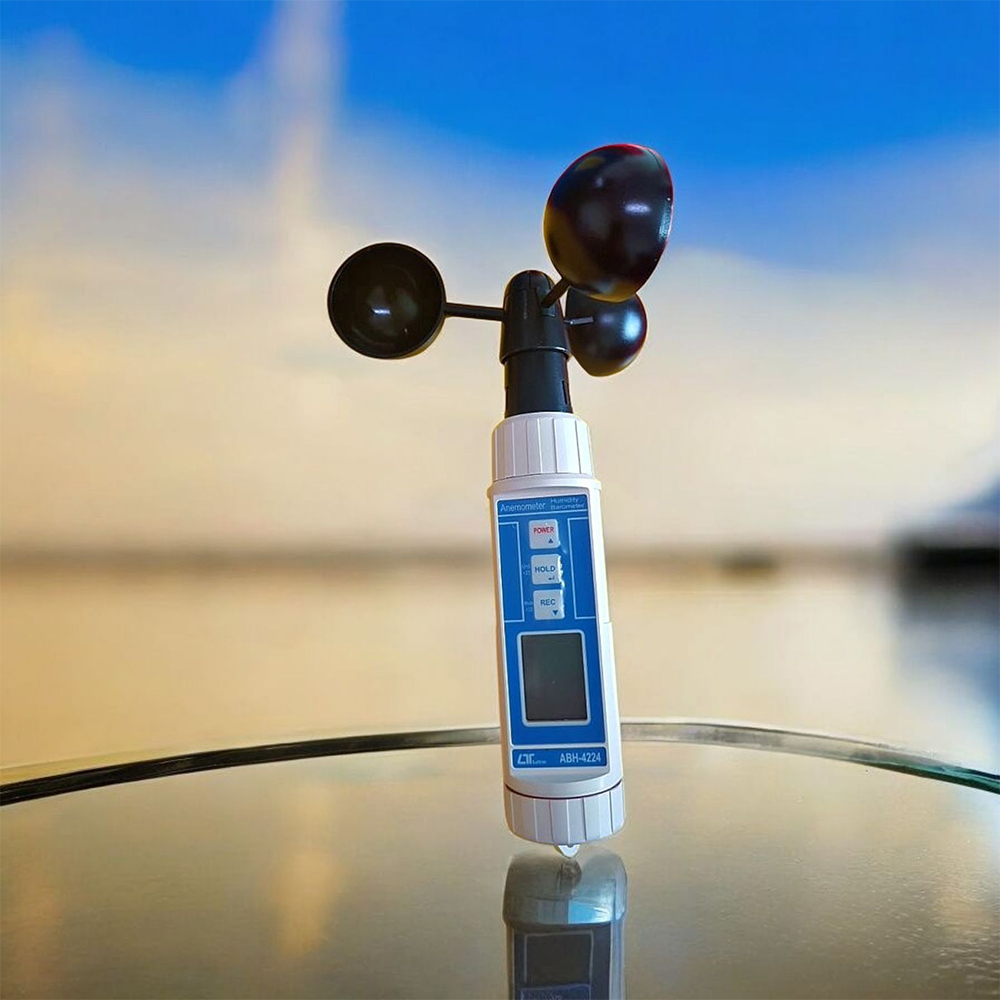

Lutron ABH-4224 Anemometer, Barometer, Humidity, Temp. Meter
Achieve Precision and Versatility with a Multi-Function Environmental Meter
The ABH-4224 Anemometer, Barometer, Humidity, and Temperature Meter offers accurate and reliable measurements for multiple environmental parameters, making it an essential tool for various professional applications.
Key Features:
* Air velocity measurement, pocket size.
* 0.5 to 25.0 m/s, ft/min., km/h. knots.
* Low friction ball-bearing vane.
* Data logger.
* Separate probe, high reliability.
* Type K Thermometer : -100 to 1300 , / . ℃ ℃℉
* Type J Thermometer : -100 to 1200 , / . ℃ ℃℉
* RS-232 interface, Record ( max., min. ).
* DC 9V battery ( 006P ) or DC 9V adapter in.
Exceptional Features of the ABH-4224
1. Four-in-One Measurement: Combines anemometer, barometer, humidity, and temperature measurements in one professional device, providing versatility for different applications.
2. Multiple Units of Measurement:
– Anemometer: m/s, Km/h, FPM, mph, Knot.
– Barometer: hPa, mmHg, inHg.
– Temperature: °C, °F.
– Humidity with Dew Point Measurement.
3. High Accuracy and Fast Response:
– Anemometer accuracy: ± (2% + 0.2 m/s).
– Barometer accuracy: ± 1.5 hPa.
– Humidity accuracy: ± (3% reading + 1% RH).
– Temperature accuracy: ± 0.8°C / 1.5°F.
4. User-Friendly Interface: Features a bright LCD display with dual mode selection for humidity/temperature, humidity/dew point, anemometer/temperature, and barometer/temperature. It also includes data hold, maximum and minimum recall functions, and auto power off to save battery life.
5. Durable and Portable Design: Constructed with durable, long-lasting components enclosed in a strong, compact ABS-plastic housing. The device operates from four DC 1.5V (UM4/AAA) batteries and is lightweight for easy portability.
Technical Specification & Model Options
– Display:
– LCD Size: 28 mm x 19 mm
– Dual display with six selectable modes
– Measurement Ranges:
– Anemometer:
– m/s: 0.9 to 35.0 m/s (Resolution: 0.1 m/s)
– Km/h: 2.5 to 126.0 Km/h (Resolution: 0.1 Km/h)
– FPM: 144 to 6895 Ft/min (Resolution: 1 Ft/min)
– mph: 1.6 to 78.2 Mile/h (Resolution: 0.1 Mile/h)
– Knot: 1.4 to 68.0 Knots (Resolution: 0.1 Knots)
– Temperature:
– Range: 0 to 50°C / 32 to 122°F (Resolution: 0.1°C / 0.1°F)
– Humidity:
– Range: 10% to 95% R.H. (Resolution: 0.1% R.H.)
– Dew Point:
– °C: -25.3 to 48.9°C (Resolution: 0.01°C)
– °F: -13.5 to 120.1°F (Resolution: 0.01°F)
– Barometer:
– hPa: 10.0 to 1100 hPa (Resolution: 0.1 hPa, 1 hPa)
– mmHg: 7.5 to 825.0 mmHg (Resolution: 0.1 mmHg)
– inHg: 0.29 to 32.48 inHg (Resolution: 0.01 inHg)
– Accuracy:
– Anemometer: ± (2% + 0.2 m/s)
– Barometer: ± 1.5 hPa (10.0 to 999.9 hPa), ± 2 hPa (1000 to 1100 hPa)
– Humidity: ± (3% reading + 1% R.H.)
– Temperature: ± 0.8°C / 1.5°F
– Power Supply: DC 1.5V (UM4/AAA) batteries x 4 PCs
– Power Consumption: Approx. DC 5.2 mA
– Operating Environment:
– Temperature: 0 to 50°C
– Humidity: Less than 80% RH
– Dimensions: 190 x 40 x 32 mm (7.5 x 1.6 x 1.3 inches)
– Weight: 182 g (0.4 lb) including battery
Accessories Included:
– Instruction Manual: 1 PC
– Hard Carrying Case: 1 PC
Advanced Features:
– Microprocessor Circuit: Ensures high accuracy and special functions.
– Low-Friction Ball Vane Wheels: Accurate in both high and low velocities.
– Data Hold Function: Freezes the desired reading on the display.
– Maximum/Minimum Recall: Records and recalls the maximum and minimum readings.
– Auto Power Off: Saves battery life by turning off automatically.
Invest in the ABH-4224 Anemometer, Barometer, Humidity, and Temperature Meter for precise and reliable environmental measurements, ensuring high performance and versatility in various professional applications.
